Automation
Overview
Automation is an intelligent scenario feature provided by Aqara Studio that helps you achieve linkage control and automatic response between devices. For example, when a thermostat detects that the room temperature exceeds 30°C, the air conditioner will automatically turn on.
With flexible visual configuration capabilities, Aqara Studio enables you to quickly build automation flows suitable for various scenarios, easily realizing smart control and collaboration of IoT devices.
Key Advantages
- Flexible Orchestration: Modular design supports free combination of logic, math, and control functions, adapting to diverse IoT scenarios.
- Intuitive Operation: Graphical data connection interface lowers configuration barriers and improves development efficiency.
- Real-time Effectiveness: Configurations take effect immediately upon completion—no need to restart devices or the system.
Supported Modes

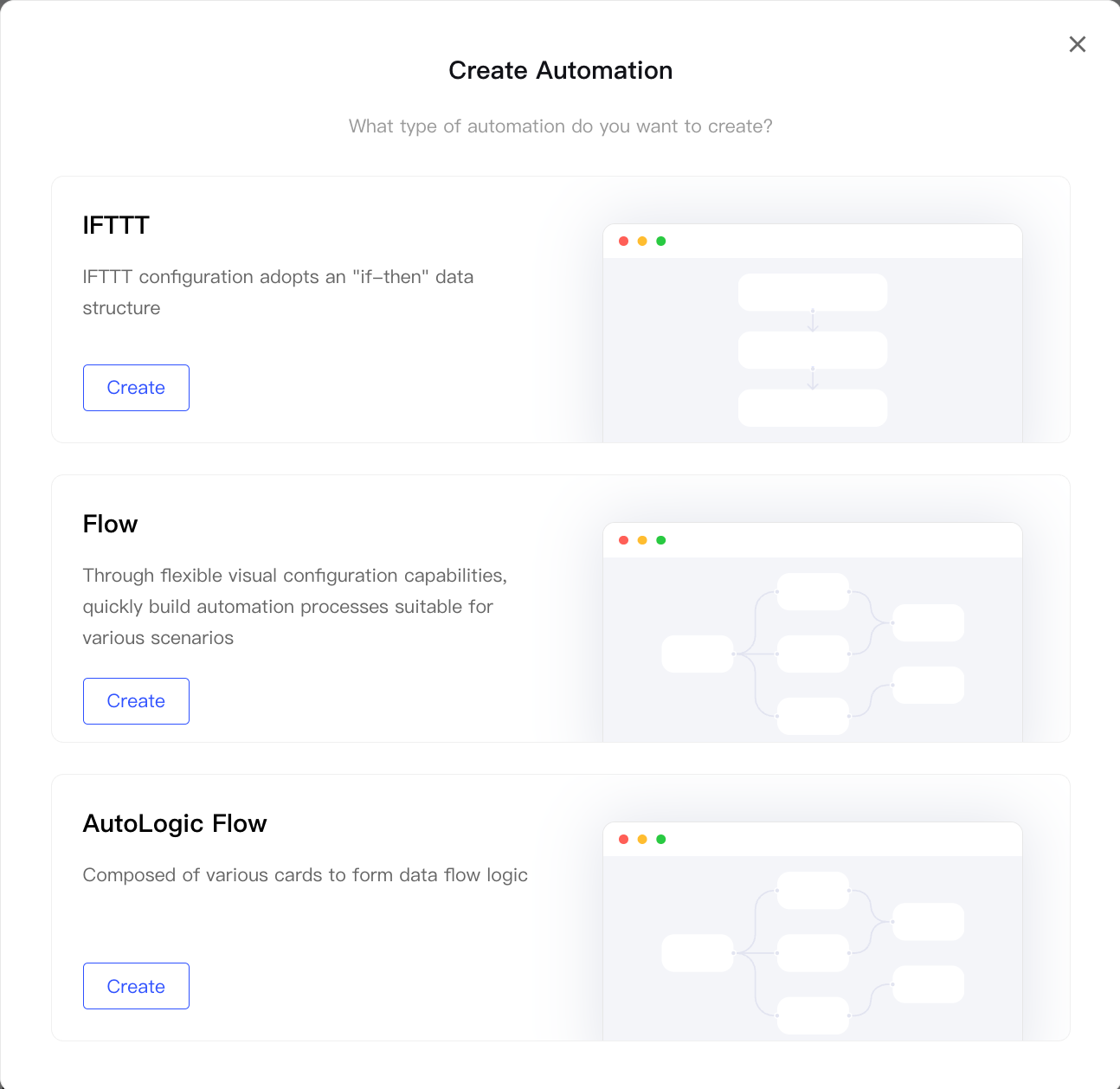

Aqara Studio supports you in creating the following three automation modes:
- Standard IFTTT (IF This Then That)
- The standard automation configuration uses an IF-AND-THEN data structure to help you quickly achieve automation settings.
- Advanced Flow
- With flexible visual configuration capabilities, you can use various cards to form data flow logic and quickly build automation processes for many scenarios, easily achieving smart control and collaboration of IoT devices.
- Logic
- With flexible visual automation configuration capabilities, you can quickly achieve intelligent control of IoT devices by combining multiple functional modules and data flow logic.
Prerequisites
Before you begin, please make sure you have added devices to Aqara Studio. For relevant instructions, see the following integration guides:
Create an Automation
You can create automation by following the steps below:
-

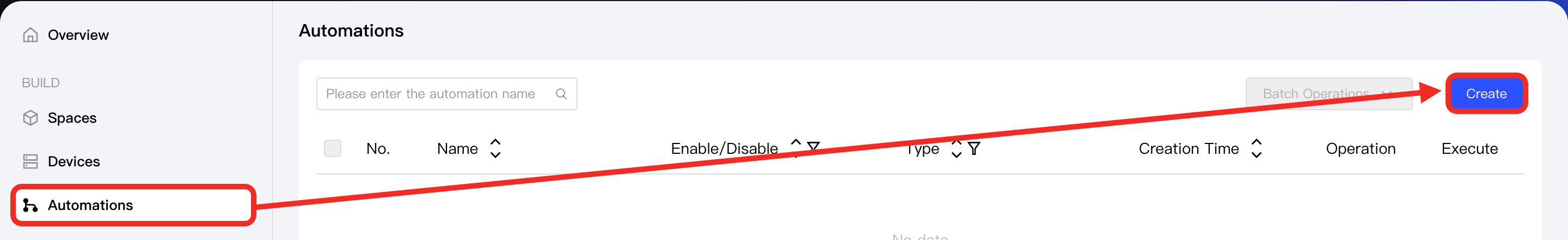

Click "Automation" in the left sidebar.
-
Click the "Add" button and select the mode you need to enter the editing page.
For introductions of components in each mode, please refer to the following documents:
